Omap-Mod

Available for sale Jan-2010

Yuli Kaplunovsky, yk@magniel.com  +1 408 884 5965,
Magniel Inc.  1669-2 Hollenbeck av #211, Sunnyvale, CA 94087, USA. www.magniel.com

About the size of a business card 67 x 44mm

A stand alone system with an option to use it as a piggyback.

Features:

• Omap3530
• TPS65950
• Accelerometer
• Touch screen controller
• Battery charger
• 2 USB (one OTG, and the other is HOST)
• 4 LEDs
• Reset button, and User button

On board connectors:

• 5V power connector
• Battery connector, the board charges the battery.
• Headset with microphone or headphones (iPhone-style)
• USB-OTG connector
• Composite Video Out
• Video In - PAL / NTSC
• 3Mpixel camera connector, VO-GX300-3640AFV1 from vaopto.com
• JTAG header
• Micro-SD socket
• USB-HOST header
• Speakers header
• RS-232 header

The edge connectors has the following signals:

• UART @ 3.3V  - 3 units
• One of the UARTs @ RS-232 levels
• I2C @ 3.3V
• SPI @ 3.3V
• LCD 24 bit @ 3.3V
• Touch screen
• 6 Digital Inputs and 14 Digital Outputs @ 3.3V
• 2 Analog inputs
• 2 PWM outputs @ 3.3V
• All the GPMC signals (data & address & control) to allow connecting Ethernet chip (or 2nd camera adaptor)
• USB-OTG
• USB-HOST
• Microphone, Speakers, Headset

This 'base-board' can be custom developed having the dimm-144 and few more connectors which you require. It can be a simple 2 sided PCB that can be developed manufactured and assembled in as little as 1 week.

In contrast to other 'module' manufacturers, It is NOT required to have this base-board; the 'Omap-Mod' has already plenty of connectors on board.

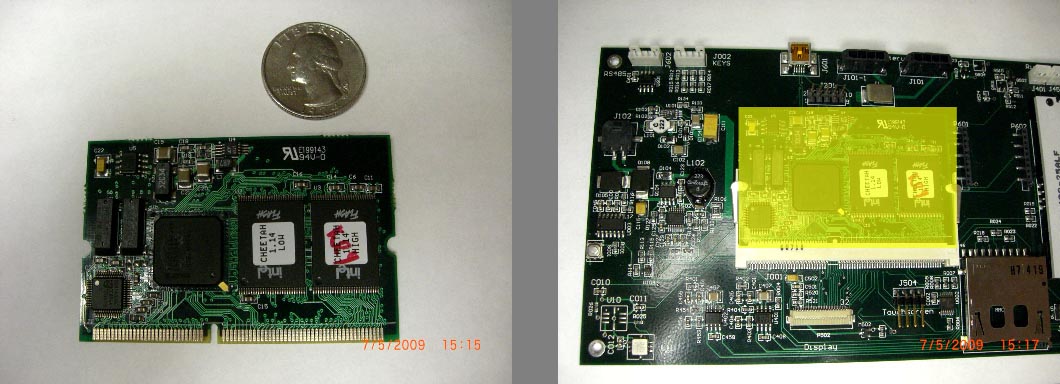

Physical illustration of a similar board - and a the "base-board" concept.

Offering for sale, or manufacture to customize hardware or software. Also we offer to design a base-board with additional options.

An actual photo of the first version of the board:
